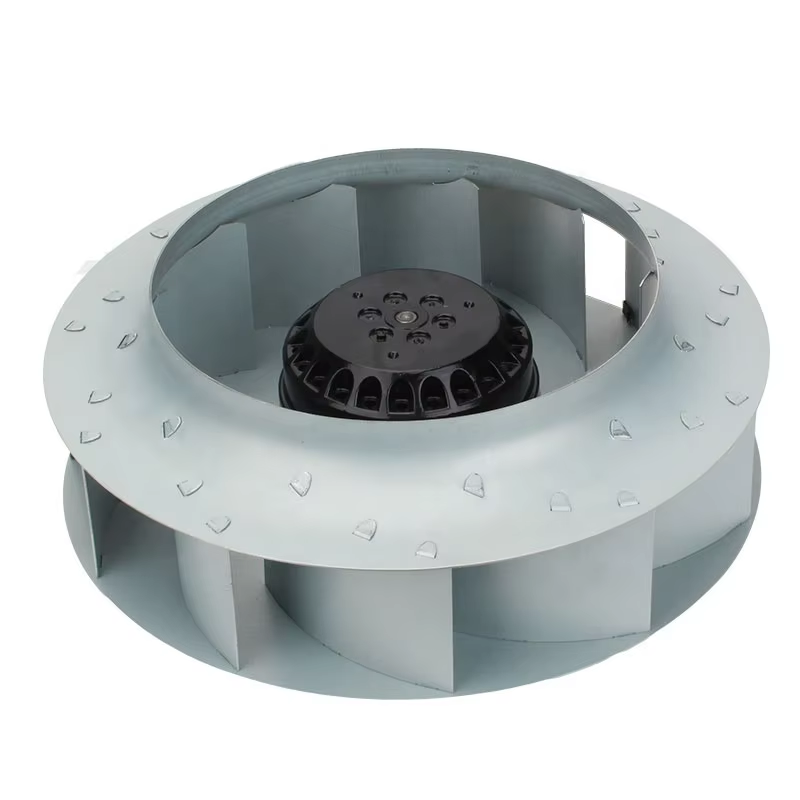

YWL2E-190-60-HW-F AC backward curved blades centrifugal fan, China YWL2E-190-60-HW-F AC backward curved blades centrifugal fan Manufacturers, Suppliers, Factory -Taizhou Hangda Electromechanical Co., LTD.

Presenting the YWL2E-190-60-HW-F AC backward curved blades centrifugal fan, the most recent enhancement towards the popular line of product through Hangyan. This effective fan functions cutting edge innovation as well as is developed towards provide ideal efficiency, resilience, as well as effectiveness.

Ready along with backward curved blades, this fan can provide an air flow is outstanding while running at reduced rates. The AC electric motor is crafted to become energy-efficient, guaranteeing long-lasting cost financial savings as well as decreased effect is ecological. The fan is likewise geared up possessing a top quality HW-F filter, which efficiently eliminates hazardous contaminants coming from the sky, creating it an ideal option for requests where sky high top premium is a concern is actually leading.

Produced to become simple towards placed in as well as requirements maintenance is very little. Its own light-weight dimension as well as building is light-weight it perfect for setups in limited distant locations as well as areas. The fan runs at an audio is reduced, creating it suitable environments where sound contamination requirements to become reduced.

Developed towards final as well as endure also the most difficult problems. Its own durable building as well as high top premium products guarantee it is a choice is dependable commercial requests. The fan housing is produced coming from top-quality steel as well as covered possessing a surface is resilient deal long-lasting security versus use as well as rust. The backward blades being curved made from high-strength lightweight aluminum as well as produced to become immune towards damages coming from resonances as well as effects.

Appropriate for a selection of requests in different markets, consisting of HVAC bodies, production information centers, as well as centers. Along with its own power effectiveness, reduced sound level, as well as high-quality filtering, it truly is an ideal option for requests where sky high top premium as well as body effectiveness are crucial.

The YWL2E-190-60-HW-F AC backward curved blades centrifugal fan is one more outstanding item through Hangyan. A essential for any type of company that worth’s sky high top premium, expense effectiveness, as well as dependability. Contact today towards understand much a lot extra.

Specification

Model	Voltage	Frequency (Hz)	Current (A)	Power (W)	Speed (r/min)	Volume (m3/h)	Pressure (Pa)	Noise (dB)
YWL2E-190-60-HW-F	220/230	50	0.28	65	2600	470	320	66
YWL2D-190-60-HW-F	380/400	50	0.23	60	2600	470	320	66
YWL2E-230-75-HW-F	220/230	50	0.7	150	2600	850	430	39
YWL2D-230-75-HW-F	380/400	50	0.35	110	2600	850	430	39
YWL2E-230-89-HW-F	220/230	50	0.75	170	2650	1200	500	70
YWL2D-230-89-HW-F	380/400	50	0.40	150	2650	1200	500	70
YWL2E-250-80-HW-F	220/230	50	0.83	182	2550	1150	600	68
YWL2D-250-80-HW-F	380/400	50	0.53	170	2550	1150	600	68
YWL2E-250-108-HW-A	220/230	50	1.2	290	2650	1700	720	76
YWL2D-250-108-HW-A	380/400	50	0.65	265	2650	1700	720	76
YWL2E-280-80-HW-F	220/230	50	1.05	240	2500	1800	800	79
YWL2D-280-80-HW-F	380/400	50	0.6	220	2500	1800	800	79
YWL4E-280-80-HW-F	220/230	50	0.42	80	1400	1030	230	63
YWL4D-280-80-HW-F	380/400	50	0.28	75	1400	1030	230	63
YWL2E-280-112-HW-F	220/230	50	1.9	400	2700	2300	750	80
YWL2D-280-112-HW-F	380/400	50	0.75	380	2700	2300	750	80
YWL4E-280-112-HW-F	220/230	50	0.58	120	1400	1280	240	63
YWL4D-280-112-HW-F	380/400	50	0.45	115	1400	1280	240	63
YWL2E-280-133-HW-A	220/230	50	2.6	520	2600	2600	550	78
YWL2D-280-133-HW-A	380/400	50	1.3	500	2600	2600	550	78
YWL4E-315-136SP-HW-A	220/230	50	0.6	135	1400	1900	345	63
YWL4D-315-136SP-HW-A	380/400	50	0.35	135	1400	1900	345	63
YWL6E-315-136SP-HW-A	220/230	50	0.38	75	930	1000	150	58
YWL6D-315-136SP-HW-A	380/400	50	0.23	75	930	1000	150	58
YWL4E-355-144SP-HW-A	220/230	50	0.75	165	1400	2450	425	64
YWL4D-355-144SP-HW-A	380/400	50	0.45	170	1400	2450	425	64
YWL6E-355-144SP-HW-A	220/230	50	0.47	100	930	1220	165	59
YWL6D-355-144SP-HW-A	380/400	50	0.3	95	930	1220	165	59
YWL4E-355-169SP-HW-A	220/230	50	1.05	210	1380	2550	465	64
YWL4D-355-169SP-HW-A	380/400	50	0.56	190	1380	2550	465	64
YWL4E-400-142SP/147ST-HW-A	220/230	50	1.2	260	1350	2850	435	65
YWL4D-400-142SP/147ST-HW-A	380/400	50	0.6	265	1350	2850	435	65

Product Advantage

High-temperature resistant: All the motor components are made of 180℃ high-temperature pure copper wire, which offers higher temperature resistance and is suitable for a wider range of applications.

High suction power: With a static pressure of up to 1000 pa and a ventilation volume of up to 26,000 m³/h, it has greater suction force and can discharge smoke more quickly.

Stable operation: Both during production and before final assembly, dynamic balance tests are conducted to ensure continuous operation without any faults for 20,000 hours.

Low noise: Utilizing the advantages of the external rotor structure, the noise level can be as low as 60 decibels, achieving complete silence.

Good sealing performance: The motor adopts an external rotor structure, ensuring excellent sealing performance. It is more resistant to water, dust and oil.

Aesthetics: Compact design, self-manufactured processing procedures, high-temperature powder coating treatment, attractive appearance

Certificate

Our products have obtained certifications such as CQC, CE, and UL. They are exported to countries all over the world, including Europe and the United States. We can also apply for additional certifications based on customer requirements.

Company Advantage

27 Years of Industry Expertise | Focused R&D and Manufacturing

· Hangda’s dedicated R&D team specializes in external rotor fans, with 1 invention patent and 11 utility model patents.

· Our fans are CQC, CE, UL certified, exported globally (Europe, America, etc.), and customizable for additional certifications.

· We offer tailored solutions for voltage, frequency, appearance, color, lead wires, and hole positions. Widely used in automation equipment for refrigeration, printing, medical, and commercial industries.

High-Precision Manufacturing | Reliable Quality

· Boasting a 30,000 m² modern production base with 11 specialized workshops (including laser cutting and motor workshops), we control all processes in-house for superior quality assurance.

· Equipped with high-precision machinery such as laser cutters, CNC machines, CNC punch presses, CNC grinders, CNC press brakes, automatic impregnation lines, and automatic plastic spraying lines, we maintain machining accuracy within 5μm.

· Our self-built 400KVA solar power system ensures uninterrupted production, with an annual capacity of 500,000 units to meet large-scale demand.

Strict Management & Quality Control

· Production strictly follows ISO9000:2015 and 6S workshop management, with environmental impact assessment approved by the Ministry of Ecology and Environment.

· In-house production of motor shafts ensures high slot fill rate, stable power output, and long service life. We conduct in-process inspection and 100% final testing.

· Equipped with withstanding voltage testers, computer balancing machines, and three-phase parameter analyzers, plus dedicated motor and fan test labs for rigorous quality inspection.

Comprehensive Service & Robust Support System

· Rapid Response: Solutions provided within 30 minutes, 1-year warranty included.

· Adequate Stock: 25,000 motors & 12,000 fans in stock, ready for shipment within 3 days.

· Reliable Logistics: Partnered with top logistics providers for door-to-door delivery.

FAQ

Q1. When can I get the quotation?

We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.

Q2. How can I get a sample to check your quality?

After price confirmed, you can requiry for samples to check quality.

If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ

Q3. Can you do OEM for us?

Yes, the product packing can be designed as you want.

Q4. How about MOQ?

1 pcs for carton box.

Q5. What is your main market?

Eastern Europe, Southeast Asia, South America.
