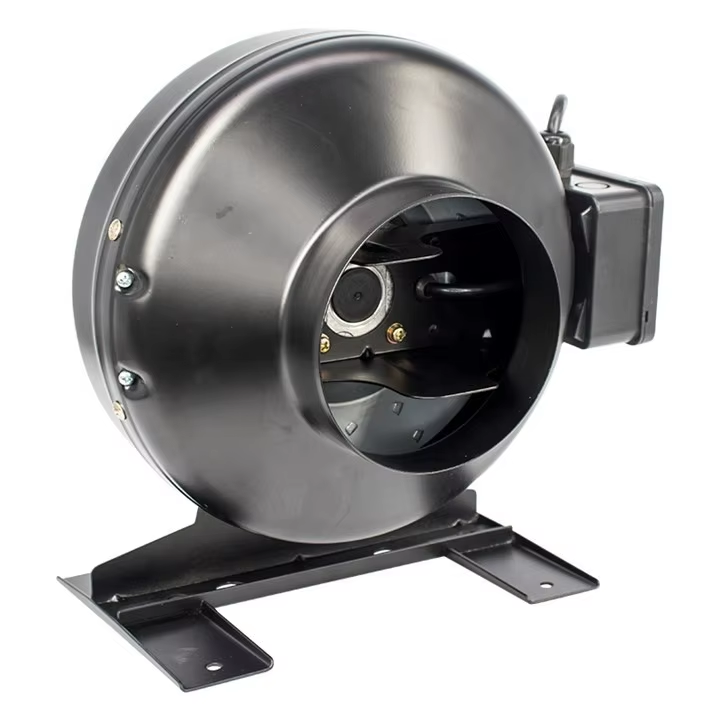

Looking for a reliable and efficient ventilation system for your home or office? Look no further than the Centrifugal In line Duct Fan from Hangyan! Available in sizes ranging from 4 inches to 12 inches, these powerful fans are perfect for improving air circulation in any space.
It was created to offer powerful airflow while remaining quiet and energy-efficient. It features a high-quality engine that delivers excellent performance, even when installed in long run. The fan is additionally fitted with advanced level blades being optimized for maximum airflow and minimal noise. This ensures that the indoor climate remains calm, without compromising performance.
Thanks to its versatile design, this product can be used for many applications. It’s perfect for ventilating bathrooms, kitchens, washing spaces, and other areas where humidity and odors can accumulate. It can also be used to improve atmosphere circulation in HVAC systems, assisting to reduce power usages and improve interior air quality.
Installation is easy and quick, thanks to its lightweight and compact design. The fan can directly be installed onto ductwork, without the necessity for additional brackets or aids. It could be installed either horizontally or vertically, based on your certain needs.
This item has a high-quality construction and versatile design. This ensures that you can be confident in your purchase and rely on your ventilation system for decades to come.
So, why wait? Improve your indoor air quality and comfort today with the Centrifugal In line Duct Fan from Hangyan. Whether you need a 4 inch fan for your bathroom or a 12 inch fan for your commercial space, we’ve got you covered with a reliable and efficient solution that won’t break your bank. Order yours today and have an experience with the comfortability this product brings.
Specification
| Model | Rated Voltage (V) |
Frequency (Hz) |
Current (A) |
Input Power (w) |
Speed (r/min) |
Volume (m/h) |
Pressure (Pa) |
Noise level dB(A) |
| DKT4E-200L | 220 | 50 | 1.05 | 320 | 1360 | 1200-2000 | 320-200 | 62 |
| DKT4D-200L | 380 | 50 | 0.55 | 300 | 1360 | 1200-2000 | 320-200 | 62 |
| DKT6E-200L | 220 | 50 | 0.80 | 150 | 930 | 1000-1800 | 180-120 | 58 |
| DKT4E-225M | 220 | 50 | 1.95 | 450 | 1360 | 1400-3200 | 380-260 | 64 |
| DKT4D-225M | 380 | 50 | 0.85 | 400 | 1360 | 1400-3200 | 380-260 | 64 |
| DKT6E-225M | 220 | 50 | 1.0 | 180 | 930 | 1200-2200 | 180-120 | 58 |
| DKT4E-250M | 220 | 50 | 3.50 | 800 | 1360 | 2500-4000 | 400-270 | 75 |
| DKT4D-250M | 380 | 50 | 1.68 | 800 | 1380 | 2500-4000 | 400-270 | 75 |
| DKT6E-250M | 220 | 50 | 1.40 | 370 | 930 | 2100-3000 | 220-200 | 68 |
| DKT6D-250M | 380 | 50 | 1.20 | 370 | 930 | 2100-3000 | 220-200 | 68 |
| DKT4E-280M | 220 | 50 | 6.50 | 1500 | 1360 | 3500-5500 | 520-430 | 75 |
| DKT4D-280M | 380 | 50 | 3.20 | 1800 | 1360 | 3500-5500 | 520-430 | 75 |
| DKT4D-300M | 380 | 50 | 3.80 | 2200 | 1360 | 4500-6000 | 750-470 | 82 |
| DKT6E-300M | 220 | 50 | 3.50 | 1800 | 930 | 3000-4200 | 420-330 | 72 |
| DKT6D-300M | 380 | 50 | 1.50 | 750 | 930 | 3000-4200 | 420-330 | 72 |
| DKT4D-300L | 380 | 50 | 4.60 | 3000 | 1360 | 5500-7000 | 750-470 | 82 |
| DKT6E-300L | 220 | 50 | 5.00 | 1100 | 930 | 4000-5200 | 420-330 | 72 |
| DKT6D-300L | 380 | 50 | 3.00 | 1100 | 930 | 4000-5200 | 420-330 | 72 |
Product Advantage
High-temperature resistant: All the motor components are made of 180℃ high-temperature pure copper wire, which offers higher temperature resistance and is suitable for a wider range of applications.
High suction power: With a static pressure of up to 1000 pa and a ventilation volume of up to 26,000 m³/h, it has greater suction force and can discharge smoke more quickly.
Stable operation: Both during production and before final assembly, dynamic balance tests are conducted to ensure continuous operation without any faults for 20,000 hours.
Low noise: Utilizing the advantages of the external rotor structure, the noise level can be as low as 60 decibels, achieving complete silence.
Good sealing performance: The motor adopts an external rotor structure, ensuring excellent sealing performance. It is more resistant to water, dust and oil.
Aesthetics: Compact design, self-manufactured processing procedures, high-temperature powder coating treatment, attractive appearance
Certificate
Our products have obtained certifications such as CQC, CE, and UL. They are exported to countries all over the world, including Europe and the United States. We can also apply for additional certifications based on customer requirements.
Company Advantage
27 Years of Industry Expertise | Focused R&D and Manufacturing
· Hangda’s dedicated R&D team specializes in external rotor fans, with 1 invention patent and 11 utility model patents.
· Our fans are CQC, CE, UL certified, exported globally (Europe, America, etc.), and customizable for additional certifications.
· We offer tailored solutions for voltage, frequency, appearance, color, lead wires, and hole positions. Widely used in automation equipment for refrigeration, printing, medical, and commercial industries.
High-Precision Manufacturing | Reliable Quality
· Boasting a 30,000 m² modern production base with 11 specialized workshops (including laser cutting and motor workshops), we control all processes in-house for superior quality assurance.
· Equipped with high-precision machinery such as laser cutters, CNC machines, CNC punch presses, CNC grinders, CNC press brakes, automatic impregnation lines, and automatic plastic spraying lines, we maintain machining accuracy within 5μm.
· Our self-built 400KVA solar power system ensures uninterrupted production, with an annual capacity of 500,000 units to meet large-scale demand.
Strict Management & Quality Control
· Production strictly follows ISO9000:2015 and 6S workshop management, with environmental impact assessment approved by the Ministry of Ecology and Environment.
· In-house production of motor shafts ensures high slot fill rate, stable power output, and long service life. We conduct in-process inspection and 100% final testing.
· Equipped with withstanding voltage testers, computer balancing machines, and three-phase parameter analyzers, plus dedicated motor and fan test labs for rigorous quality inspection.
Comprehensive Service & Robust Support System
· Rapid Response: Solutions provided within 30 minutes, 1-year warranty included.
· Adequate Stock: 25,000 motors & 12,000 fans in stock, ready for shipment within 3 days.
· Reliable Logistics: Partnered with top logistics providers for door-to-door delivery.
FAQ
Q1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ
Q3. Can you do OEM for us?
Yes, the product packing can be designed as you want.
Q4. How about MOQ?
1 pcs for carton box.
Q5. What is your main market?
Eastern Europe, Southeast Asia, South America.
